Specifications
Kamera
Lens
FOV: 119.8°
Format Equivalent: 16.5 mm
Aperture: f/2.2
Focus: 0.7 m to ∞
ISO Range
100-3200 (Single Auto)
100-12800 (Burst Auto/Timed Auto)
100-12800 (Manual)
Video
100-12800 (Auto)
100-12800 (Manual)
Shutter Speed
Video: 1/8000-1/30 s
Photo: 1/8000-1/10 s
Max Image Size
12 MP Photo
4000×3000 (4:3)
4000×2250 (16:9)
Still Photography Modes
Single/Timed Shot
Single Shot: 12 MP
Timed Shot: 12 MP, 2/3/5/7/10/15/20/30/60 s
Photo Format
JPEG
Video Resolution
Horizontal Shooting:
4K (4:3): 3840×2880@60/50/30fps
1080p (4:3): 1440×1080@60/50/30fps
4K (16:9): 3840×2160@100*/60/50/30fps
1080p (16:9): 1920×1080@100*/60/50/30fps
Vertical Shooting:
2.7K (9:16): 1512×2688@60/50/30fps
* 4K/100fps and 1080p/100fps recording are only supported when using motion control or remote control.
Video Format
MP4
Max Video Bitrate
80 Mbps
Supported File System
exFAT
Color Mode
Normal
EIS
Supports RockSteady and turning stabilization off.*
*The stabilization switch (On/Off) is only available when paired with goggles. When stabilization is turned off, footage captured supports offline stabilization with Gyroflow.
Aircraft
Takeoff Weight
151 g (without DJI Neo 2 Digital Transceiver)
160 g (with DJI Neo 2 Digital Transceiver)
The actual product weight may vary due to differences in batch materials and external factors.
Dimensions
147 × 171 × 41 mm (L×W×H, with propeller guards and without DJI Neo 2 Digital Transceiver)
167 × 171 × 54 mm (L×W×H, with propeller guards and DJI Neo 2 Digital Transceiver)
Max Ascent Speed
0.5 m/s (Cine mode)
3 m/s (Normal mode)
5 m/s (Sport Mode)
Maximum speed measured in an open, windless environment, with the drone taking off from an altitude of 0 m and controlled via remote controller. Data are for reference only.
Max Descent Speed
0.5 m/s (Cine Mode)
3 m/s (Normal Mode)
3 m/s (Sport Mode)
Maximum speed measured in an open, windless environment, with the drone taking off from an altitude of 0 m and controlled via remote controller. Data are for reference only.
Max Horizontal Speed
8 m/s (Normal Mode)
12 m/s (Sport Mode)
12 m/s (tracking status)
Maximum speed measured in an open, windless environment, with the drone taking off from an altitude of 0 m and controlled via remote controller. Data are for reference only.
Max Takeoff Altitude
2000 m
Measured in a windless environment when taking off from an altitude of 2000 m and ascending vertically by 120 m, using Sport mode, and from 100% battery level until 20%. Data is for reference only. Always pay attention to reminders on the camera view during your flight.
Max Flight Time
Approx. 19 minutes (approx. 17 minutes with the propeller guards)*
Each battery allows the drone to perform at least 20 palm takeoff and landing for shoots in succession**
* Measured when flying forward at a speed of 4 m/s in a windless environment 20 m above sea level, without DJI Neo 2 Digital Transceiver, with camera parameters set to 1080p/30fps, video mode off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.
** Measured after DJI Neo 2 is activated, with a fully charged battery and default settings, and using Circle, Rocket, and Dronie modes, and is for reference only.
Max Hovering Time
Approx. 18 minutes (16.5 minutes with the propeller guards)
Measured when hovering in a windless environment 20 m above sea level, without DJI Neo 2 Digital Transceiver, with camera parameters set to 1080p/30fps, video mode off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.
Max Flight Distance
7 km
Measured when flying forward at a speed of 9 m/s in a windless environment 20 m above sea level, without DJI Neo 2 Digital Transceiver, with camera parameters set to 1080p/30fps, video mode off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.
Max Wind Speed Resistance
10.7 m/s (Level 5)
Operating Temperature
-10° to 40° C (14° to 104° F)
Global Navigation Satellite System
GPS + Galileo + BeiDou
Hovering Accuracy Range
Vertical:
±0.1 m (with vision positioning)
±0.5 m (with satellite positioning)
Horizontal:
±0.3 m (with vision positioning)
±1.5 m (with satellite positioning)
Internal Storage
49 GB
Class
C0 (EU)
Gimbal
Stabilization
2-axis mechanical gimbal (tilt, roll)
Mechanical Range
Tilt: -125° to 105°
Roll: -43° to 43°
Controllable Range
Tilt: -90° to 70°
Max Control Speed (tilt)
100°/s
Angular Vibration Range
±0.01°
Image Roll Correction
Supports correction of footage recorded on the drone
Live view correction is unavailable only when using with goggles
Baterai
Capacity
1606 mAh
Weight
46 g
Nominal Voltage
7.16 V
Max Charging Voltage
8.6 V
Battery Type
Li-ion
Chemical System
LiNiMnCoO2
Energy
11.5 Wh
Charging Temperature
5° to 40° C (41° to 104° F)
Charging Time
When Using the Two-Way Charging Hub (65W max charging power): Approx. 68 minutes to charge three batteries simultaneously from 0% to 100%
When Directly Charging the Aircraft Body (15W max charging power): Approx. 70 minutes to charge from 0% to 100%
Charging time is measured in a test environment with a temperature of 25° C (77° F). Actual charging time may increase due to higher ambient temperatures or variations in mains voltage between regions.
Sensing System
Sensing Type
Omnidirectional monocular vision system, paired with a downward infrared sensing system and forward-facing LiDAR
Forward
Measurement Range: 0.5-10 m
Detection Range: 0.5-15 m
Effective Sensing Speed: Flight Speed ≤ 8 m/s
Backward
Detection Range: 0.5-15 m
Effective Sensing Speed: Flight Speed ≤ 8 m/s
Lateral
Detection Range: 0.5-15 m
Effective Sensing Speed: Flight Speed ≤ 8 m/s
Upward
Detection Range: 0.5-15 m
Effective Sensing Speed: Flight Speed ≤ 3 m/s
Downward
Detection Range: 0.5-15 m
Effective Sensing Speed: Flight Speed ≤ 3 m/s
Infrared Sensor
Forward-Facing LiDAR:
Measurement Range: 0.3-8 m (reflectivity > 10%)
FOV: Horizontal 60°, Vertical 60°
Downward-Facing Infrared Sensor:
Measurement Range: 0.3-8 m (reflectivity > 10%)
Operating Environment
Forward, Backward, Left, Right, and Upward:
Surfaces with discernible patterns and adequate lighting (lux > 5)
Downward:
Surfaces with discernible patterns and adequate lighting (lux > 5), and surfaces that are diffusely reflective with a reflectivity above 20% (e.g., walls, trees, people).
Pengisi Daya
DJI 65W Portable Charger
USB Power Delivery chargers
Lainnya
VIDEO TRANMISSION
Video Transmission System
Standard: Wi-Fi Video Transmission
Optional: DJI Neo 2 Digital Transceiver (O4)
Live View Quality
With DJI RC-N3 Remote Controller: Up to 1080p/60fps
With DJI Goggles N3 plus DJI RC Motion 3/DJI FPV Remote Controller 3: Up to 1080p/60fps
With DJI Goggles 3 plus DJI RC Motion 3/DJI FPV Remote Controller 3: Up to 1080p/100fps
Operating Frequency
2.400 GHz to 2.4835 GHz
5.170 GHz to 5.250 GHz
5.725 GHz to 5.850 GHz
Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Transmitter Power (EIRP)
2.4 GHz:
< 26 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.1 GHz:
< 23 dBm (CE)
5.8 GHz:
< 26 dBm (FCC)
< 14 dBm (CE)
< 26 dBm (SRRC)
Communication Bandwidth
Max 60 MHz
Max Transmission Distance (unobstructed, free of interference)
FCC: 10 km
CE: 6 km
SRRC: 6 km
MIC: 6 km
Measured in an unobstructed outdoor environment free of interference using the remote controller or goggles and showed the farthest communication range for one-way, non-return flights under each standard. The maximum video transmission distance in the actual flight scenarios is limited by the drone’s maximum flight distance. Always pay attention to RTH reminders on the live view during your flight.
Max Transmission Distance (unobstructed, with interference)
Strong Interference: Urban landscape, approx. 1.5-3 km
Medium Interference: Suburban landscape, approx. 3-6 km
Low Interference: Suburb/Seaside, approx. 6-10 km
Measured under FCC standard in unobstructed environments with typical interference, using the remote controller or goggles. Used for reference purposes only and provides no guarantee for actual transmission distance.
Max Transmission Distance (obstructed, with interference)
Low Interference and Obstructed by Buildings: Approx. 0-0.5 km
Low Interference and Obstructed by Trees: Approx. 0.5-3 km
Measured under FCC standard in obstructed environments with typical low interference, using the remote controller or goggles. Used for reference purposes only and provides no guarantee for actual transmission distance.
Max Download Speed
Wi-Fi: 80 MB/s
Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on the actual conditions.
Lowest Latency
With DJI RC-N3 Remote Controller or DJI RC 2 Remote Controller: Approx. 120 ms
With DJI Goggles N3 (1080p/60fps Video Transmission): Lowest latency at 54 ms
With DJI Goggles 3 (1080p/100fps Video Transmission): Lowest latency at 50 ms
Latency data refers to the minimum delay during goggles screen refresh, measured in an open, interference‑free environment. Actual performance may vary with shooting conditions and mobile device.
Max Video Bitrate
60 Mbps
Antenna
2 antennas, 1T2R
WIFI
Protocol
802.11a/b/g/n/ac/ax
Operating Frequency
2.400 GHz to 2.4835 GHz
5.725 GHz to 5.850 GHz
Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Transmitter Power (EIRP)
2.4 GHz:
< 20 dBm (FCC/CE/SRRC/MIC)
5.8 GHz:
< 26 dBm (FCC/SRRC)
< 14 dBm (CE)
Effective Operating Range
500 m
Measured in an open outdoor environment free of interference. Actual video transmission distance may vary depending on the operating environment and mobile device performance. Refer to the actual experience.
BLUETOOTH
Protocol
Bluetooth 5.2
Operating Frequency
2.400 GHz to 2.4835 GHz
Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Transmitter Power (EIRP)
< 10 dBm

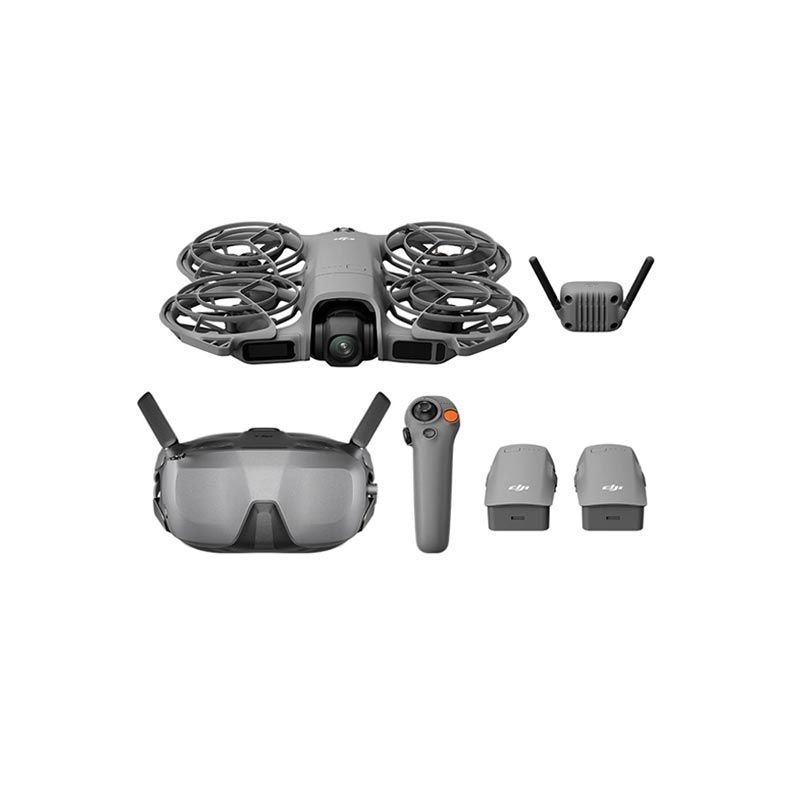

What’s in the box
DJI Neo 2 Aircraft x 1
DJI RC Motion 3 x 1
DJI Goggles N3 x 1
DJI Neo 2 Intelligent Flight Battery x 3
DJI Neo 2 Two-Way Charging Hub x 1
DJI Neo 2 Spare Propellers (Pair) x 1
DJI Neo 2 Spare Propeller Screw x 4
Screwdriver x 1
DJI Neo 2 Propeller Guard (Pair) x 1
DJI Neo 2 Digital Transceiver x 1
DJI Neo 2 Gimbal Protector x 1
USB-C to USB-C Data Cable x 1
