Specifications
Lens Mount
Micro Four Thirds
Sensor Resolution
Actual: 21.77 Megapixel
Effective: 20.3 Megapixel (8176 x 1920)
Image Sensor
17.3 x 13 mm (Four Thirds) MOS
Sensor Crop (35mm Equivalent)
Crop Factor: 2x
*Additional Crop Occurs in Select Video Modes
Image Stabilization
Sensor-Shift, 5-Axis
Built-In ND Filter
No
Capture Type
Stills & Video
Shutter Type
Mechanical Focal Plane Shutter and Electronic Rolling Shutter
Shutter Speed
Electronic Shutter
1/16000 to 1 Second
Electronic Front Curtain Shutter
1/2000 to 60 Seconds
Bulb/Time Mode
Bulb Mode
ISO Sensitivity Range
Photo : 200 to 25,600 (Extended: 100 to 25,600)
Video : 200 to 6400 in Auto Mode (Extended: 100 to 6400)
Metering Method
Center-Weighted Average, Multiple, Spot
Exposure Modes
Aperture Priority, Auto, Manual, Program, Shutter Priority
Exposure Compensation
-5 to +5 EV (1/3 EV Steps)
Metering Range
0 to 18 EV
White Balance
Presets: Auto, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set 1, White Set 2, White Set 3, White Set 4
Continuous Shooting
Up to 9 fps at Maximum Resolution for up to 30 Frames (Raw) / 600 Frames (JPEG)
Interval Recording
Yes
Self-Timer
10-Second Delay
Aspect Ratio
1:1, 3:2, 4:3, 16:9
Image File Format
JPEG, Raw
Internal Recording Modes
AVCHD
1920 x 1080p at 24.00/60.00 fps [24 to 28 Mb/s]
1920 x 1080i at 60.00 fps [17 to 29.98 Mb/s]
MP4
UHD 4K (3840 x 2160) at 24.00/30.00 fps [100 Mb/s]
1920 x 1080p at 30.00/60.00 fps [20 to 28 Mb/s]
1280 x 720 at 30.00 fps [10 Mb/s]
External Recording Modes
HDMI
DCI 4K (4096 x 2160)
Fast-/Slow-Motion Support
Slow-Motion Only
Recording Limit
No
IP Streaming
No
Built-In Microphone
Stereo
Audio Recording
AAC Audio
Media/Memory Card Slot
Single Slot: SD/SDHC/SDXC (UHS-II)
Video I/O
1x Micro-HDMI Output
Audio I/O
1x 1/8″ / 3.5 mm TRS Stereo Headphone Output
1x 1/8″ / 3.5 mm TRS Stereo Microphone Input
Power I/O
1x USB-C Input
Other I/O
1x USB-C Data Output (Shared with Power Input)
1x 2.5 mm Sub-Mini Remote Input
Wireless
Wi-Fi 4 (802.11n), Bluetooth 5.0
Mobile App Compatible
Yes: Android & iOS
App Name: Panasonic Image App
Functionality: Access Stored Files, Remote Control, View Live Feed
Global Positioning (GPS, GLONASS, etc.)
GPS
*Via Connected Smartphone
Display Size
3.0″
Resolution
1,840,000 Dot

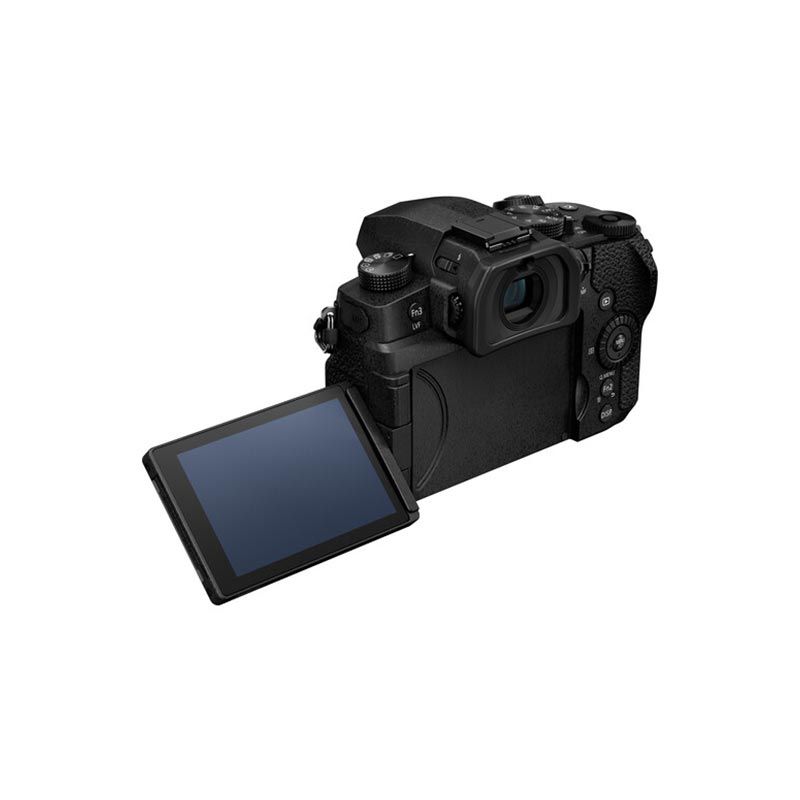

Display Type
Articulating Touchscreen OLED
Type
Built-In Electronic (OLED)
Resolution
2,360,000 Dot
Eye Point
20 mm
Coverage
100%
Magnification
Approx. 0.74x
Diopter Adjustment
-4 to +4
Focus Type
Auto and Manual Focus
Focus Mode
Automatic, Continuous-Servo AF, Flexible, Manual Focus
Autofocus Points
Contrast Detection: 49
Built-In Flash/Light
Yes, Flash Only
Flash Modes
Auto, Auto/Red-Eye Reduction, Forced On, Forced On/Red-Eye Reduction, Off, Slow Sync, Slow Sync/Red-Eye Reduction
Guide Number
9′ / 2.7 m at ISO 200
Maximum Sync Speed
1/200 Second
Flash Compensation
-3 to +3 EV (1/3 EV Steps)
Dedicated Flash System
TTL
External Flash Connection
Shoe Mount
Battery Type
1x Rechargeable Lithium-Ion, 7.2 VDC, 1200 mAh (Approx. 290 Shots)
Shoe Mount
1x Hot Shoe
Tripod Mounting Thread
1x 1/4″-20 Female (Bottom)
Material of Construction
Magnesium Alloy
Operating Conditions
14 to 104°F / -10 to 40°C at 10 to 80% Humidity
Dimensions (W x H x D)
5.1 x 3.7 x 3″ / 130.4 x 93.5 x 77.4 mm
Weight
1.1 lb / 478 g (Body Only)
1.2 lb / 530 g (With Battery, Recording Media)
Focal Length
12 to 60mm (35mm Equivalent: 24 to 120mm)
Maximum Aperture
f/3.5 to 5.6
Minimum Aperture
f/22
Angle of View
84.05° to 20.44°
Maximum Magnification
0.27x
Minimum Focus Distance
7.87″ / 20 cm
Optical Design
11 Elements in 9 Groups
Diaphragm Blades
7, Rounded
Focus Type
Autofocus
Image Stabilization
Yes
Filter Size
58 mm (Front)
Dimensions (ø x L)
2.6 x 2.8″ / 66 x 71 mm
Weight
7.4 oz / 210 g
